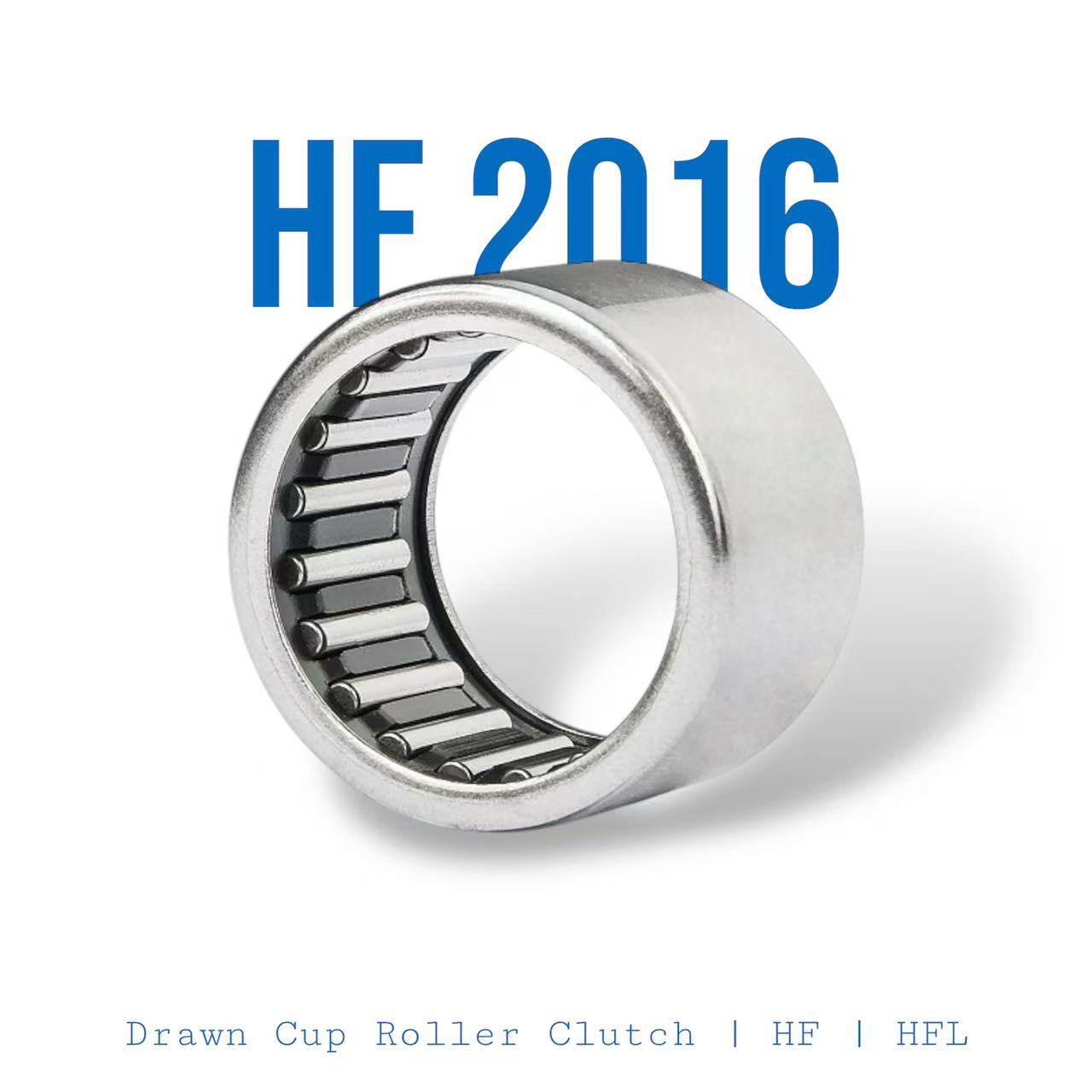

HF 2016 (FC-20) | One way Lock Bearings | Drawn Cup Roller Clutch | HF Series
₨200.00
HF 2016
The HF 2016 is a one‑way needle roller bearing (roller clutch) designed to allow rotation in one direction while locking and preventing rotation in the opposite direction. It is compact and radially slim, making it suitable for torque transmission, overrunning clutch applications, indexing mechanisms, and similar systems where controlled directional motion is required. It uses needle rollers and a spring or cage assembly to engage under load and transmit torque efficiently.
Description
Size / Dimensions:
-
Inner/Bore Diameter: 20 mm
-
Outer Diameter: 26 mm
-
Width (Thickness): 16 mm
-
Weight: ~0.017 kg
Features:
-
One‑way needle roller clutch: Allows rotation in one direction only
-
Torque transmission: Efficiently transmits torque when engaged
-
Compact design: Space‑saving, lightweight bearing unit
-
High limiting speeds: Suitable for moderate‑speed applications
-
Radially compact: Ideal where space and weight are limited
-
Typical applications: Used in automation, machinery, transmissions, and clutch systems
