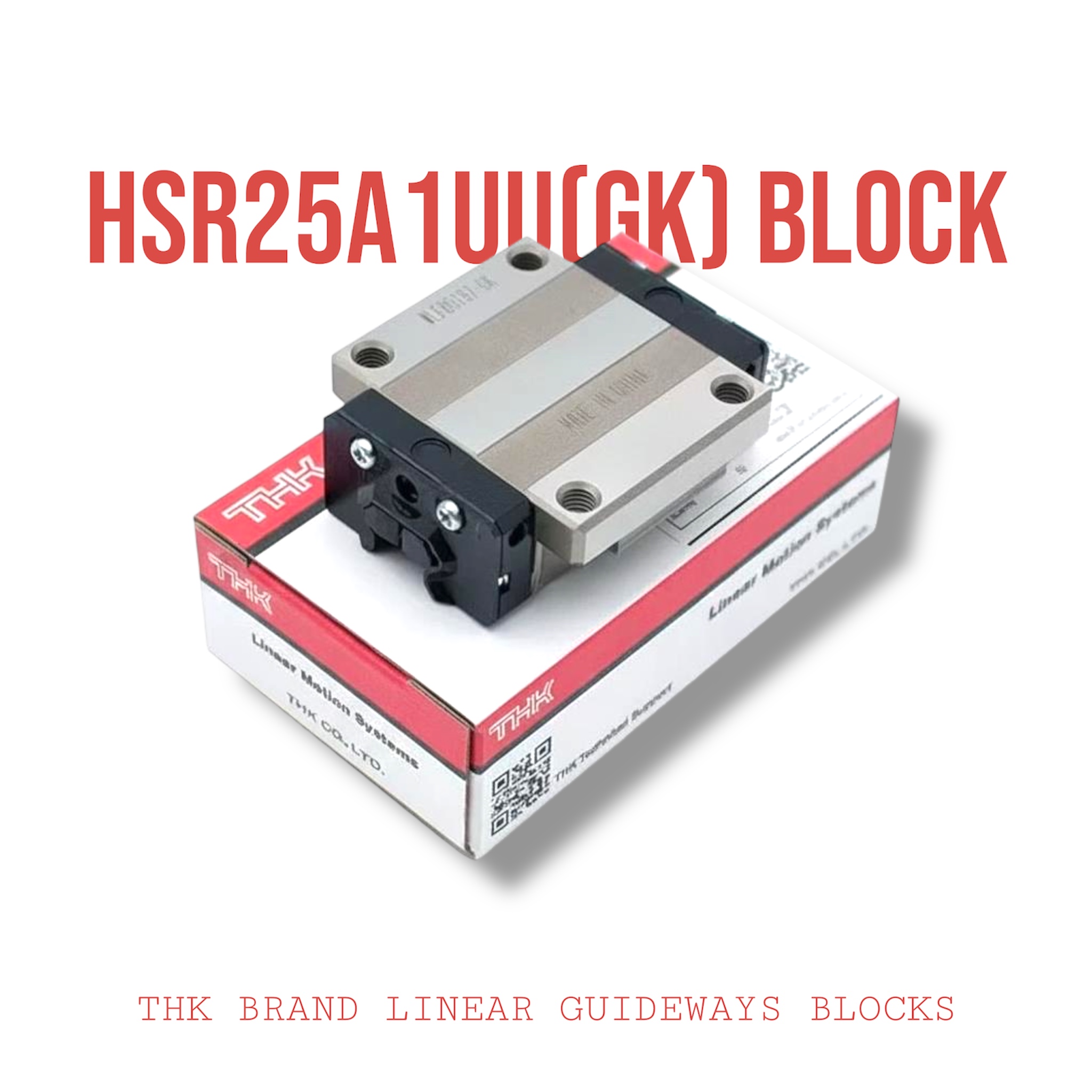

HSR25A1UU(GK) Block

The THK HSR25A1UU linear guide is a high-precision linear motion system designed for smooth, stable, and low-friction movement in industrial machinery and automation equipment. It features a 25-series rail with a block measuring approximately 70 mm in width, 36 mm in height, and 83.1 mm in length, providing a robust solution for heavier loads and larger machines compared to smaller series guides.

The block contains multiple recirculating ball bearings arranged in four rows within precision-ground raceways, allowing the balls to circulate smoothly and deliver consistent linear motion. This four-way contact design ensures balanced load capacity in all directions—radial, reverse-radial, and lateral—enabling the guide to support complex loads while maintaining high accuracy and stability. The internal geometry also allows for minor self-adjustment, compensating for small installation misalignments to ensure smooth operation.

The HSR25A1UU is built for durability and long service life, making it ideal for demanding applications such as CNC machines, milling and grinding equipment, robotic systems, and automated assembly lines. Its compact yet strong design reduces friction and drive power requirements while providing precise, repeatable motion. This combination of high load capacity, rigidity, and reliability makes the HSR25A1UU an efficient and versatile choice for both industrial-scale machinery and precision engineering projects.
