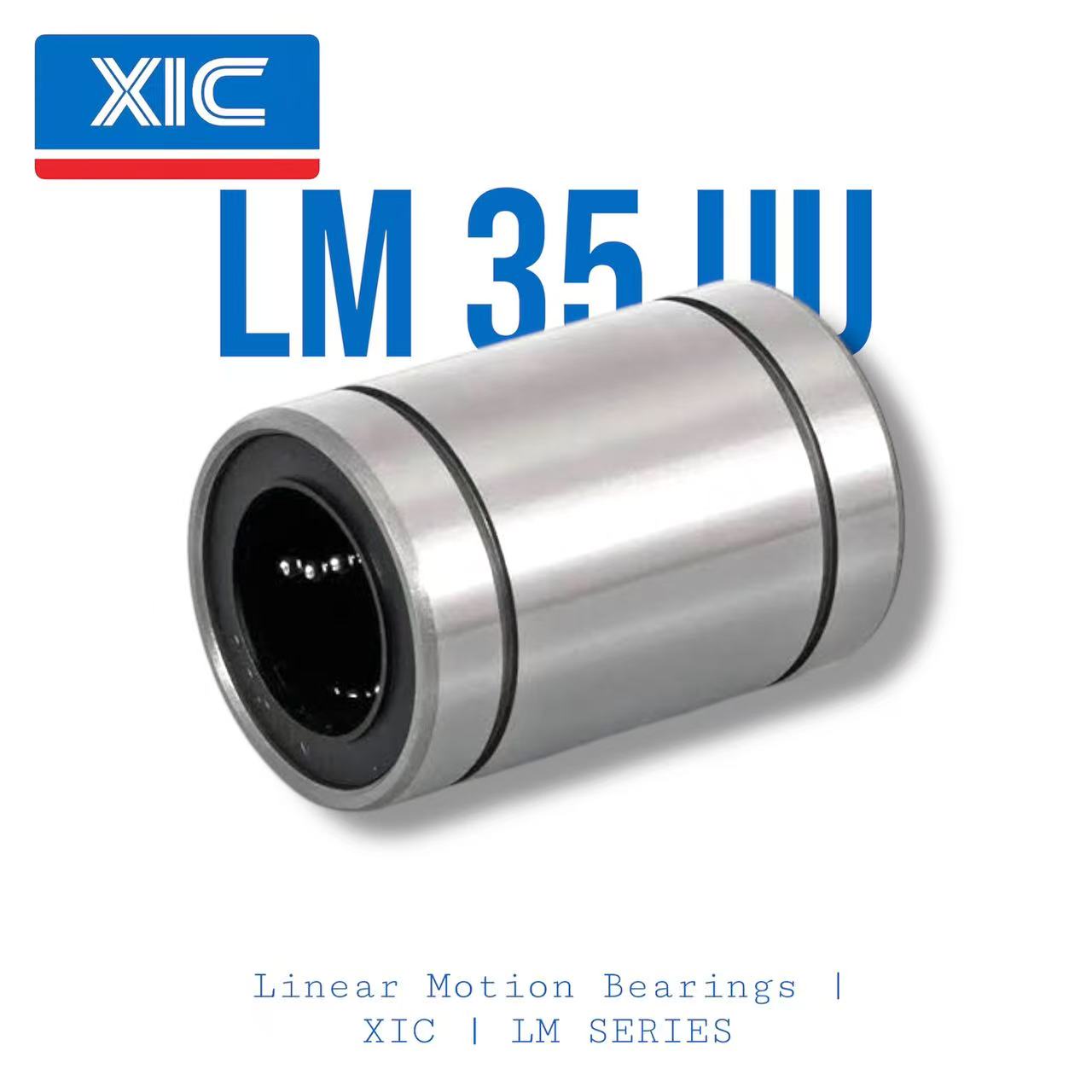

The LM 35 UU is a closed‑type linear ball bearing (also called a linear bushing) built to run smoothly along a 35 mm shaft for precise linear motion. It has an inner bore of 35 mm, an outer diameter of 52 mm, and a length (along the shaft) of 70 mm. Inside, it contains six rows of steel balls (ball circuits = 6), held in a plastic (resin) retainer, which roll along the shaft for smooth, low‑friction motion. The bearing’s body is made of hardened bearing steel, and it is sealed on both ends (“UU” = sealed both sides) to keep out dust, dirt, and moisture — reducing maintenance needs and improving durability. Its basic dynamic load rating is high (about 1670 N) and the static load rating about 3140 N, making it capable of carrying substantial loads while still enabling smooth linear motion. Because of its size, load capacity, and sealed design, LM 35 UU is commonly used in medium to large‑scale CNC machines, automation equipment, 3D printers, linear actuators, and other mechanical systems where stable, accurate, shaft‑guided linear motion under load is required.
