LR 5205 2RS | Track Roller / Cam Follower (Yoke Type) | LR Series

LR 5205 2RS | Track Roller / Cam Follower (Yoke Type) | LR Series

₨4,000.00

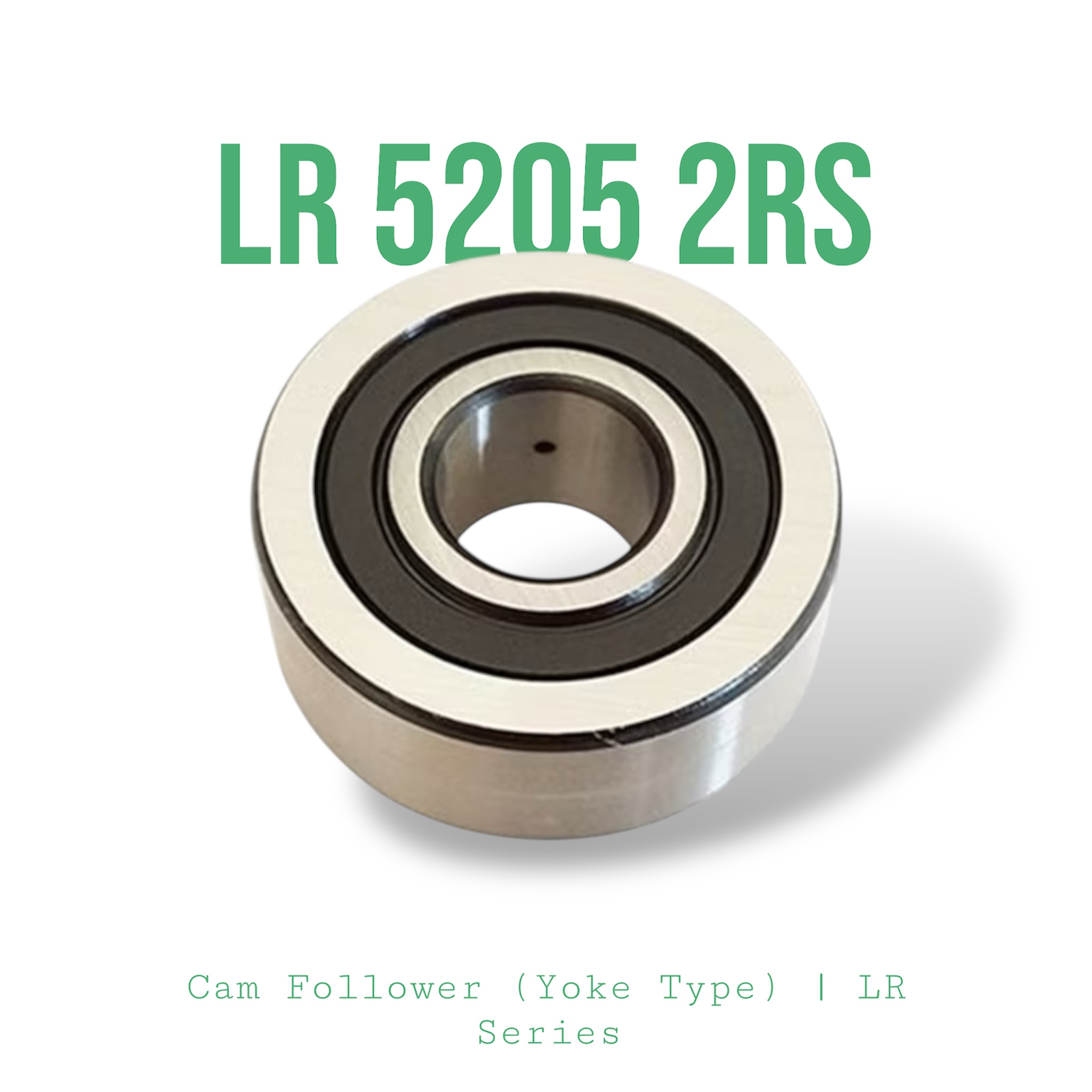

LR 5205‑2RS Yoke-Type Track Roller Bearing

The LR 5205‑2RS is a double-row, sealed track-roller bearing (cam-follower type) with a crowned outer ring. The “2RS” suffix indicates it has rubber contact seals on both sides to retain lubricant and prevent dust or contaminants from entering, making it suitable for conveyors, guide rails, cam-follower systems, and other industrial machinery where a roller must run on a track under load. The sealed, double-row construction provides stable performance, good load capacity, and reliable rolling even in harsh or dirty environments.

Order on WhatsApp

Description

LR 5205-2RS Yoke-Type Track Roller Bearing

  • Bore Diameter (Inner): 25 mm

  • Outer Diameter (Roller): 62 mm

  • Overall Width (Roller Width): 20.6 mm

  • Sealing: Double-sided rubber contact seals (2RS)

  • Outer Ring Surface: Crowned / rounded for smooth track-rolling and better stress distribution

  • Dynamic Load Rating (Approx.): 18.6 kN

  • Static Load Rating (Approx.): 11.8 kN

  • Fatigue Load Limit (Approx.): 0.5 kN

  • Approximate Weight: 0.34 kg
