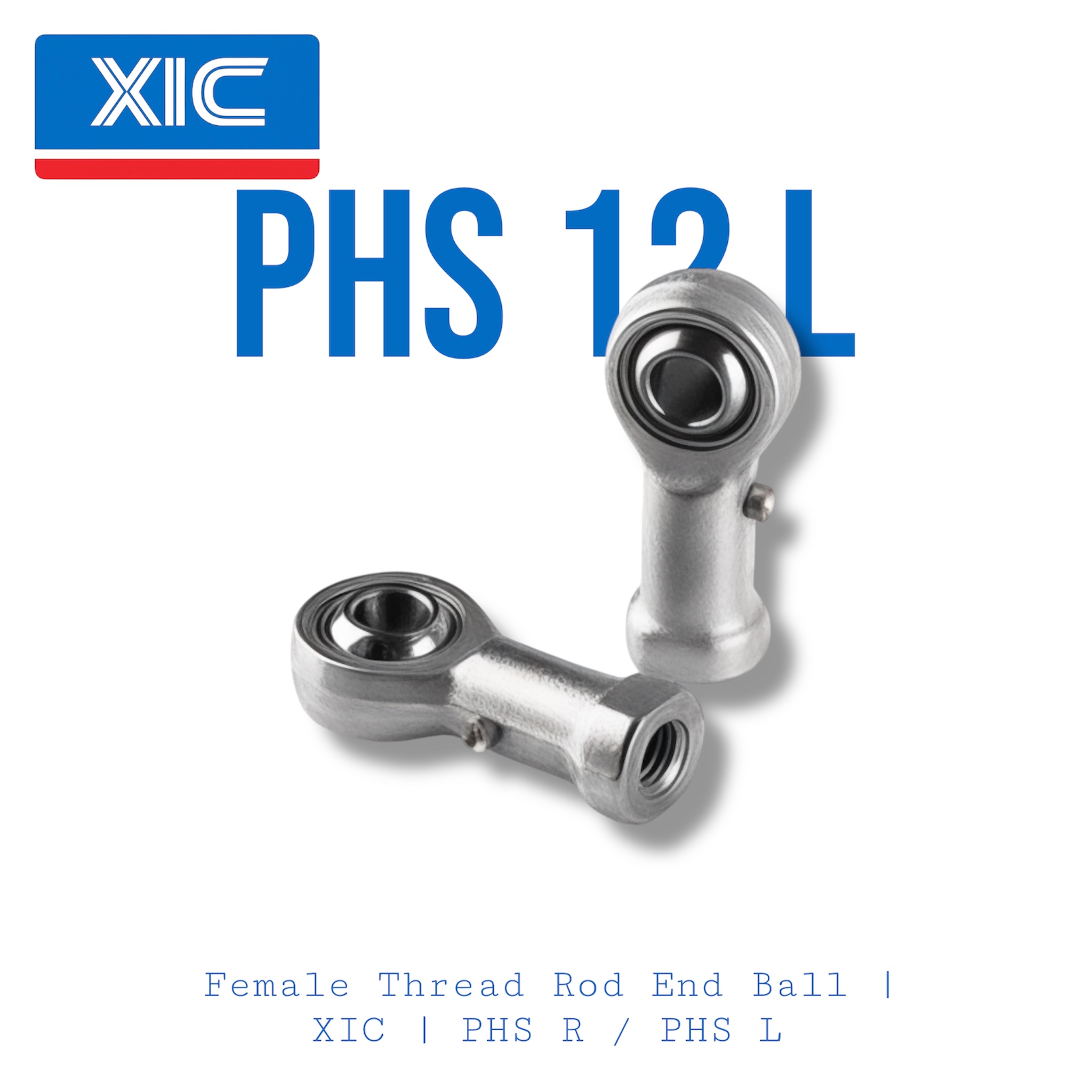

PHS 12 L | XIC | Female Thread Rod End Bearings | PHS-L

Description

PHS 12L

• Bore Diameter (Inner Diameter, d): 12 mm
• Outer Head Diameter (D): 30 mm
• Overall Height (H): ~65 mm
• Center-to-Ball Center Length: ~50 mm
• Thread Size: M12 × 1.75 (Left-hand thread)
• Body Width / Housing Thickness: Approximately 16–17.5 mm
• Dynamic Load Capacity: Around 10–13 kN
• Static Load Capacity: Around 20–22 kN
• Material: Steel body with steel/bronze (or brass) sliding contact surface
• Bearing Type: Female rod-end, spherical plain bearing
