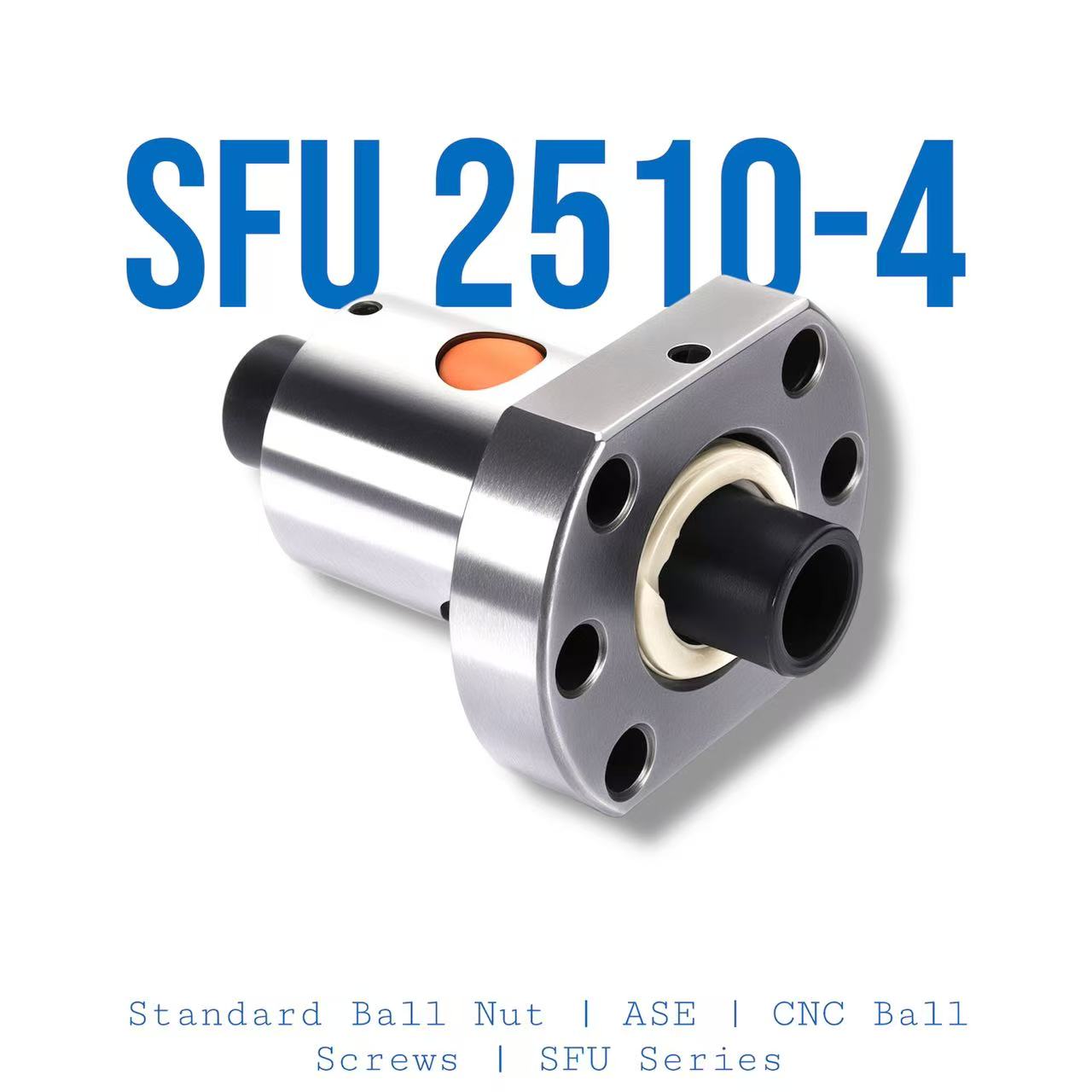

SFU 2510-4 Ball Screw Nut
The SFU 2510-4 Ball Screw Nut is a precision linear‑motion component built for CNC machines, automation systems, and industrial equipment that require reliable, smooth, and efficient conversion of rotary motion into linear movement. With a 25 mm screw diameter and a 10 mm lead, it offers faster linear displacement per revolution — making it suited for applications where both speed and moderate load‑handling are important. The nut uses a 4‑circuit internal ball recirculation design to reduce friction, decrease backlash, and improve rigidity and accuracy under load. Constructed from hardened bearing alloy‑steel, the unit is designed for long service life and durability even over extended or repetitive use. Its standard flange mounting configuration and compatibility with common support blocks make it a dependable choice for engineers, machinists, and automation designers seeking a balance between speed, precision, and durability in their linear‑motion systems.
Description
SFU 2510-4 Ball Screw Nut — Technical Specifications
-
Screw Shaft Diameter: 25 mm
-
Lead (Pitch): 10 mm per revolution
-
Nut Outer Diameter: 40 mm
-
Nut Body (Core) Diameter: approximately 40 mm (nominal)
-
Flange Outer Diameter: approximately 62 mm
-
Nut Width / Length (nut body length): 51 mm
-
Ball Diameter: approx. 4.762 mm
-
Ball Recirculation Circuits: 4 (‑4 suffix)
-
Mounting Holes: Standard 4‑hole flange pattern
-
Material: Hardened alloy / bearing‑steel (nut and screw)
-
Precision / Manufacture Type: Typically cold‑rolled ball screw, tolerance grade often C7 (or as per supplier spec)
