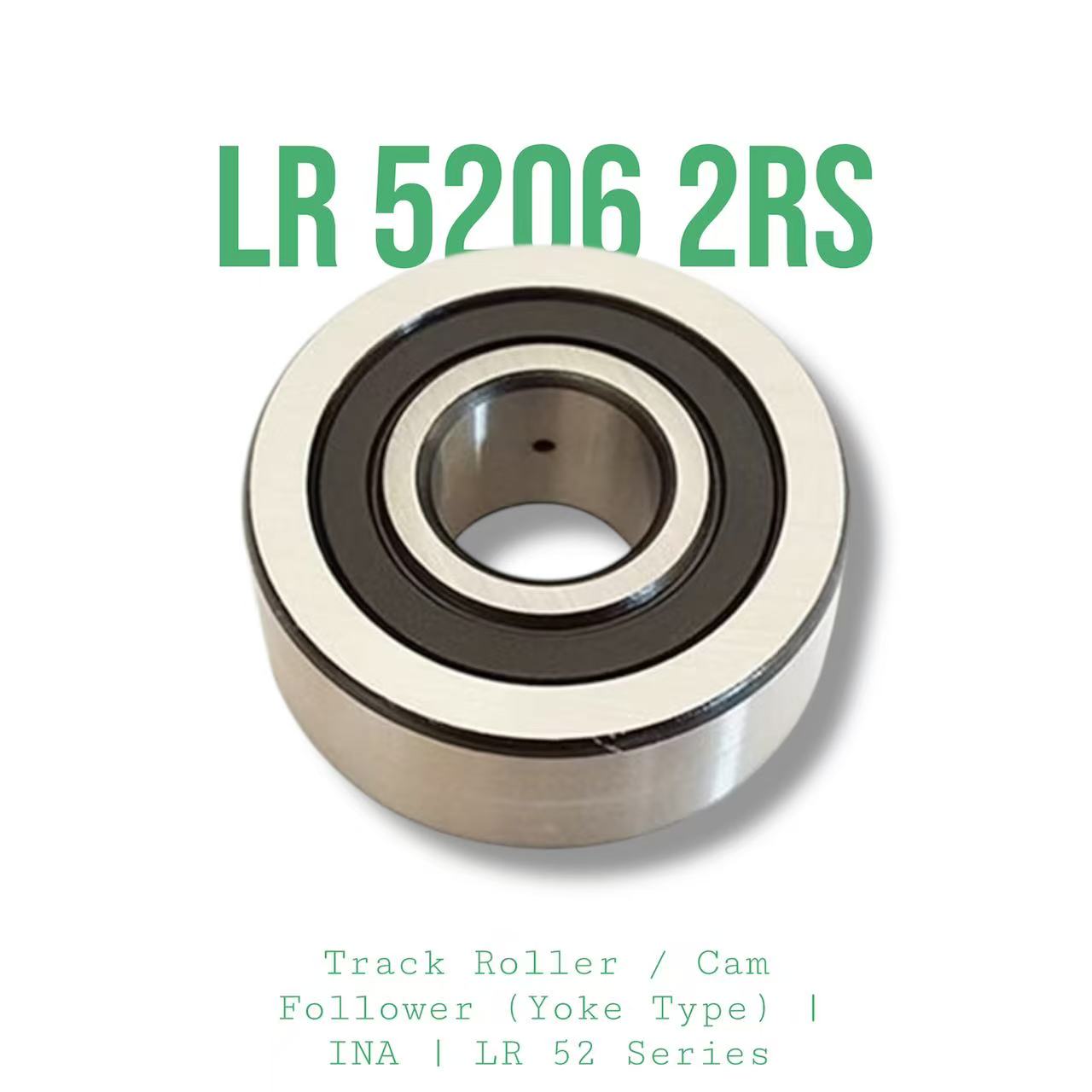

LR 5206-2RS Yoke-Type Track Roller Bearing

The LR 5206‑2RS is a yoke-type track roller (cam-follower) bearing designed for applications where a roller must run on a track or rail under load. It features a double-row construction and is sealed on both sides, as indicated by the “2RS” suffix, which protects the bearing from dust and contaminants while retaining lubrication. The bearing’s crowned outer surface allows it to tolerate slight misalignment or track irregularities, providing smooth rolling motion and enhanced durability. This makes it ideal for conveyors, guideways, industrial machinery, and other equipment requiring reliable track-following rollers in potentially harsh or dusty environments.

Order on WhatsApp

Description

LR 5206-2RS Yoke-Type Track Roller Bearing

  • Bore Diameter (Inner): 30 mm

  • Outer Diameter (Roller): 72 mm

  • Overall Width: 23.8 mm

  • Bearing Type: Double-row yoke/track roller bearing

  • Sealing: Rubber seals on both sides (2RS)

  • Dynamic Radial Load Capacity (Approx.): 24.5 kN

  • Static Load Capacity (Approx.): 17.8 kN

  • Typical Operating Temperature Range: –20 °C to +120 °C
