LR 6000 2RS | Track Roller / Cam Follower (Yoke Type) | LR Series

LR 6000 2RS | Track Roller / Cam Follower (Yoke Type) | LR Series

₨1,000.00

Order on WhatsApp

Description

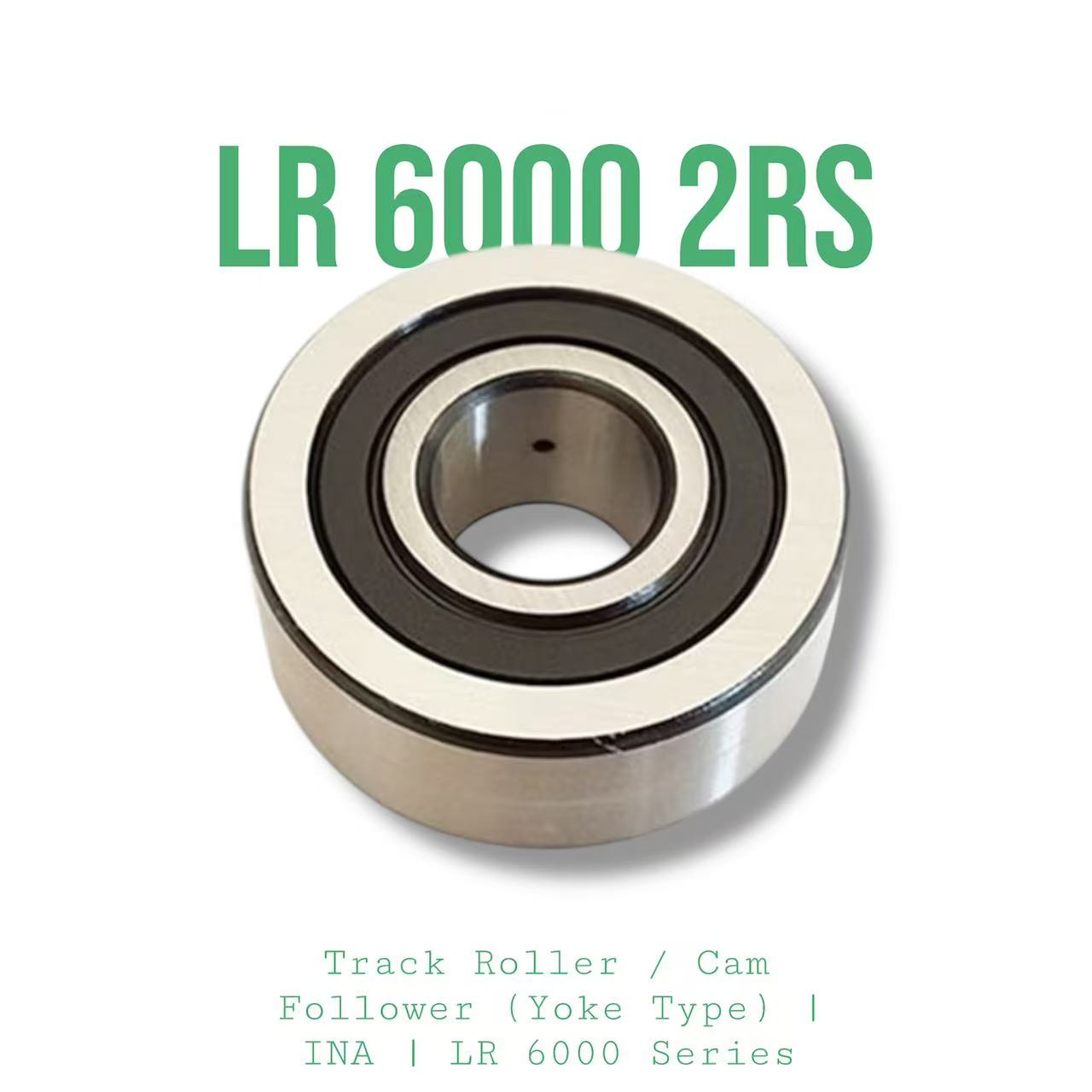

LR 6000‑2RS Track Roller Bearing

The LR 6000‑2RS is a single-row, sealed yoke-type track roller bearing that uses a crowned outer ring and double-sided rubber contact seals (2RS) to retain lubricant and keep out dust or contaminants. This makes it well suited for applications such as linear motion systems, cam-follower mechanisms, sliding guide rails, and light-duty conveyors — wherever a compact, low-friction roller bearing is needed on a track or rail.

  • Bore Diameter (Inner): 10 mm

  • Outer Diameter (Roller): 28 mm

  • Roller Width (Thickness): 8 mm

  • Sealing: Double-sided rubber contact seals (2RS)

  • Outer Ring Surface: Rounded / crowned profile for smooth track rolling and reduced stress on mating surfaces

  • Dynamic Radial Load Capacity (Approx.): 5 kN

  • Static Radial Load Capacity (Approx.): 2.55 kN

  • Approximate Weight: 0.02–0.024 kg

  • Typical Operating Speed (with grease lubrication): Up to ~16,000 rpm (free-rolling conditions)
