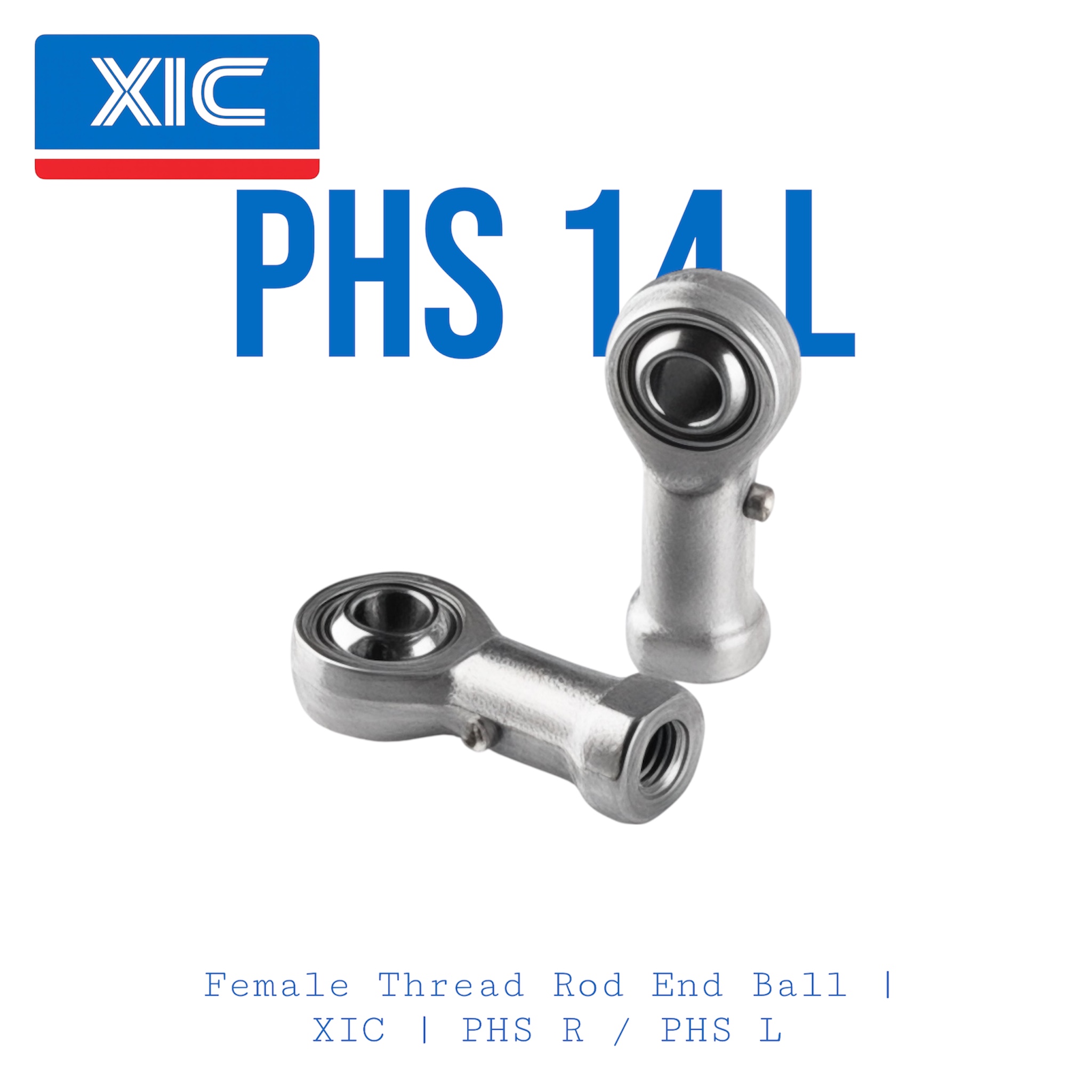

PHS 14 L | XIC | Female Thread Rod End Bearings | PHS-L

Description

PHS 14L

• Bore Diameter (Inner Diameter, d): 14 mm
• Outer Head Diameter (D): 34 mm
• Overall Height (H): ~74 mm
• Center-to-Ball Center Length: ~57 mm
• Thread Size: M14 × 2.0 (Left-hand thread)
• Body Width / Housing Thickness: Approximately 19–20 mm
• Dynamic Load Capacity: Around 13–17 kN
• Static Load Capacity: Around 24–28 kN
• Material: Steel body with steel/bronze (or brass) sliding contact surface
• Bearing Type: Female rod-end, spherical plain bearing
